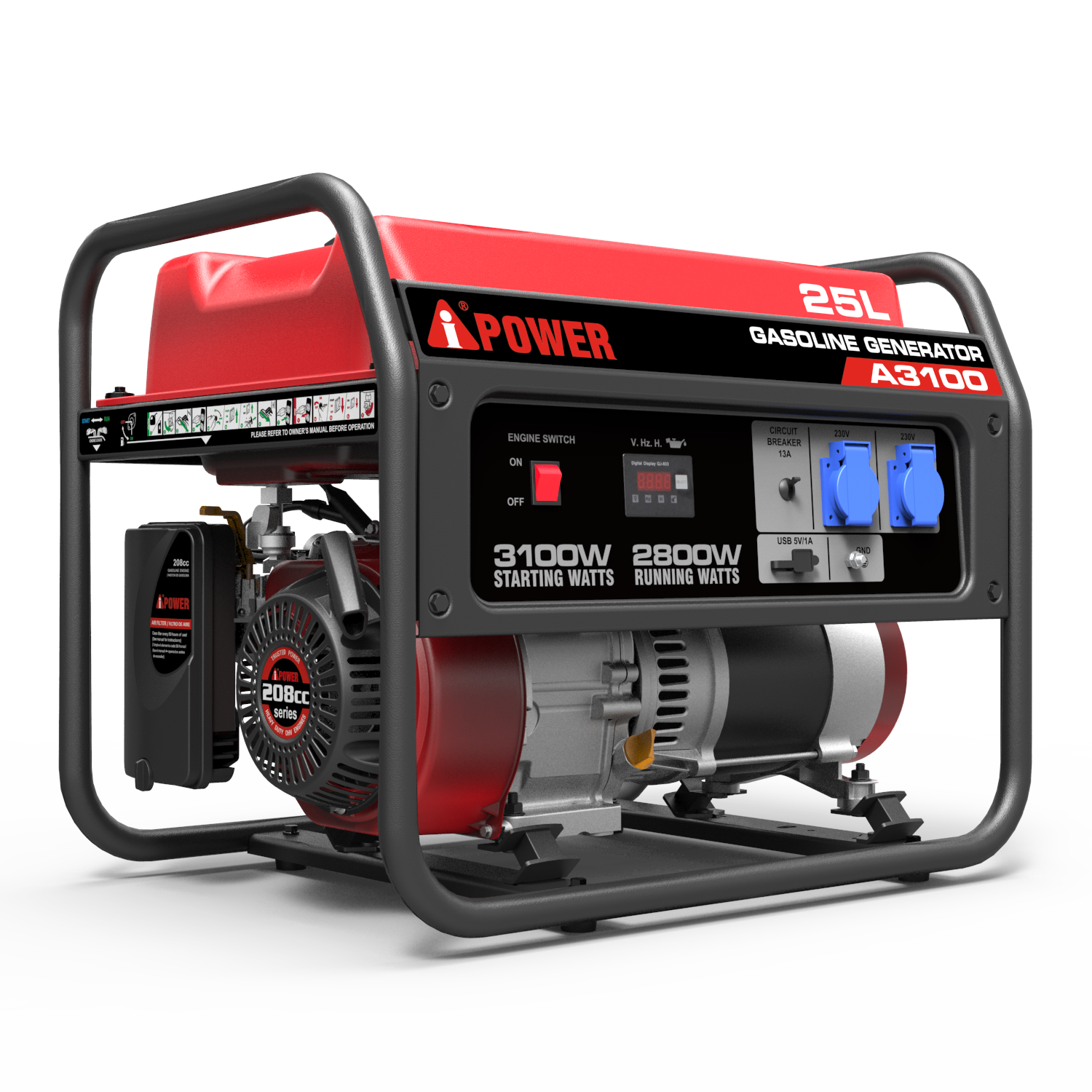

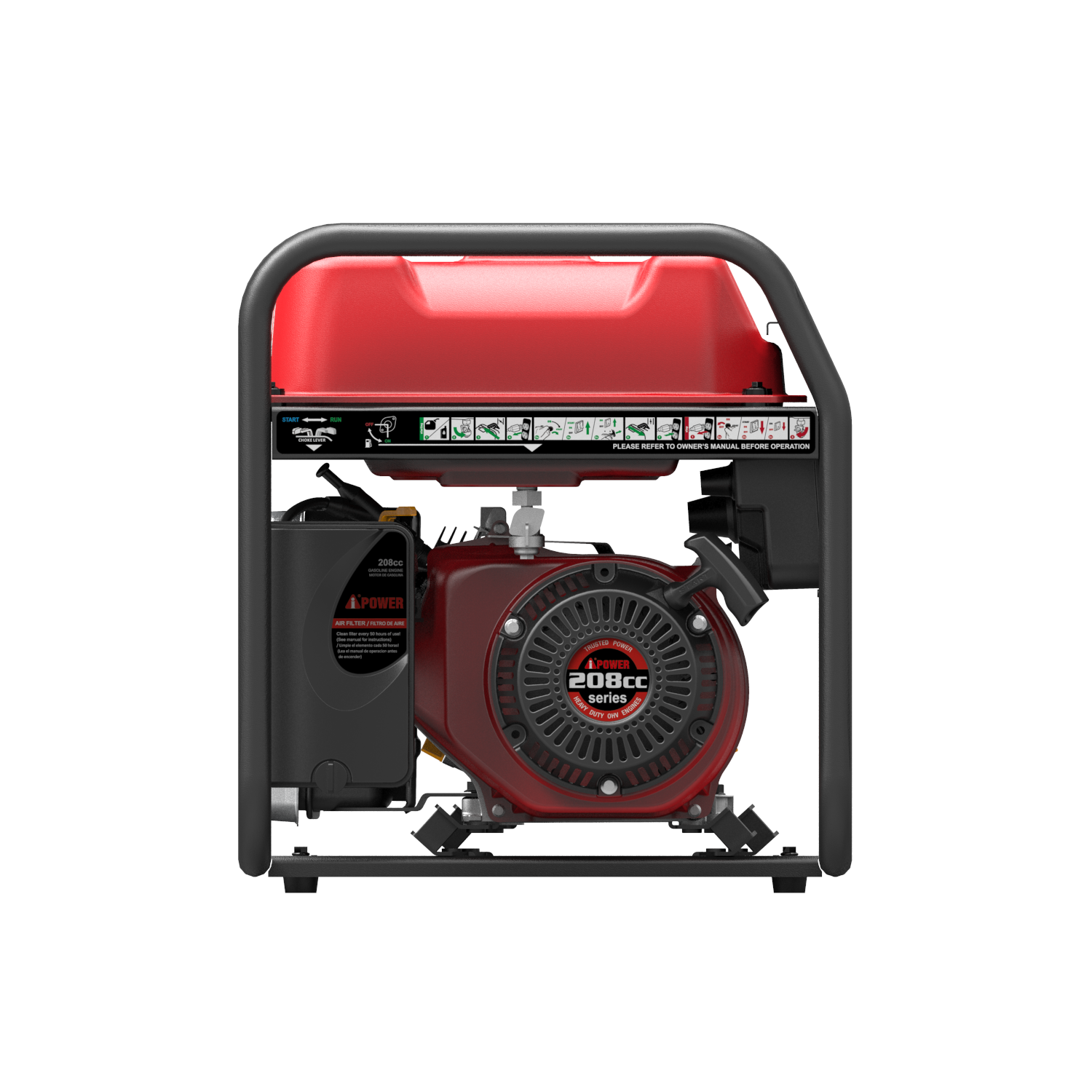

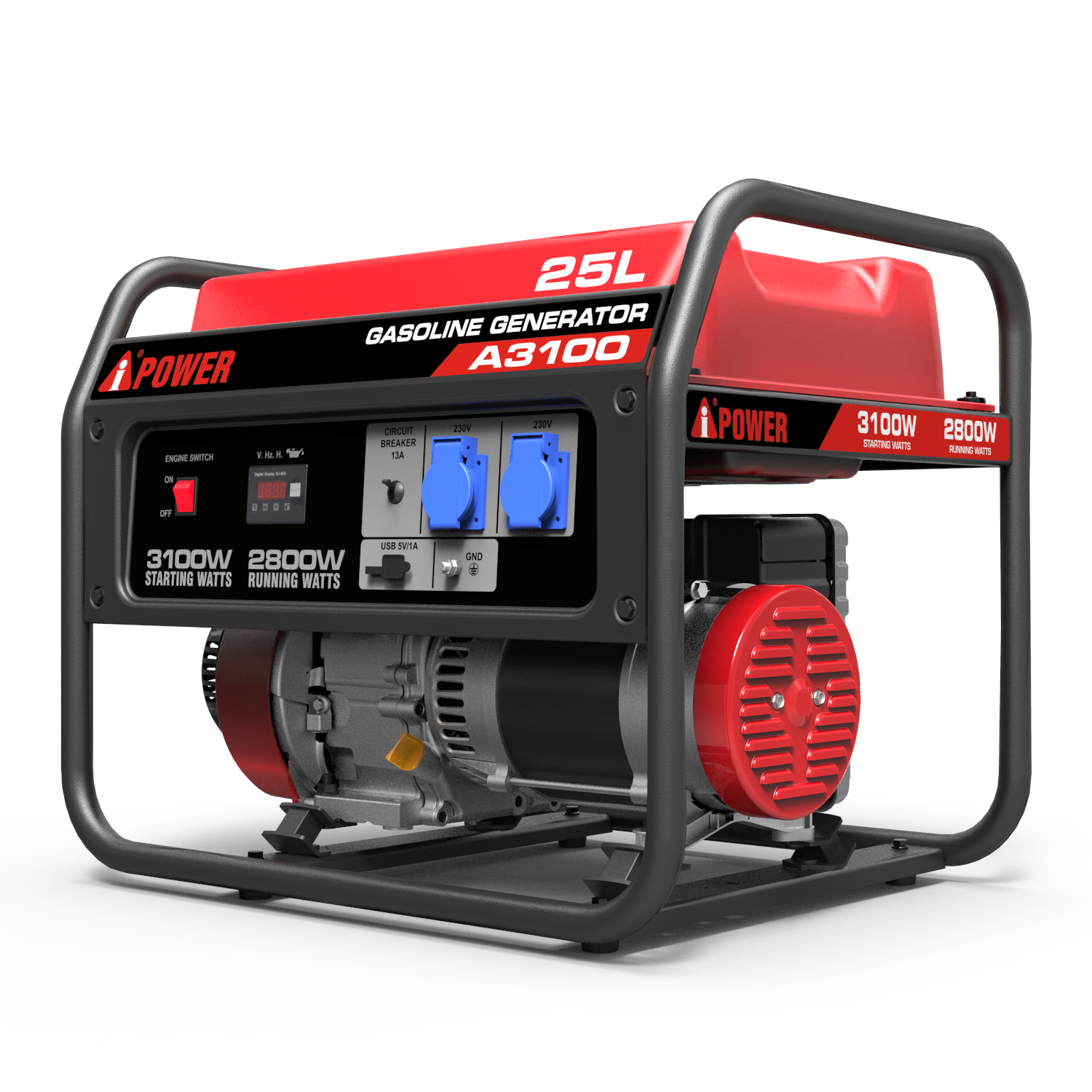

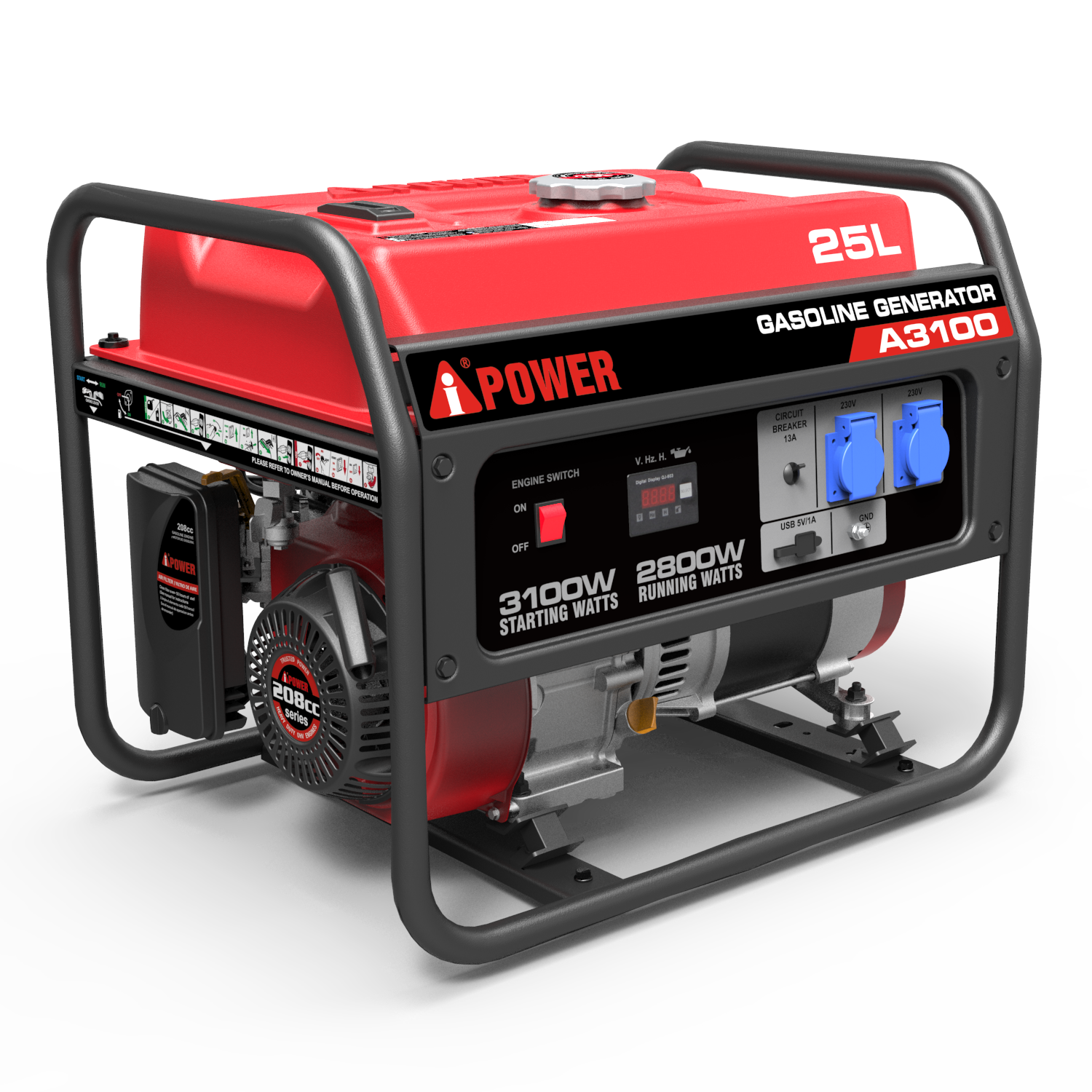

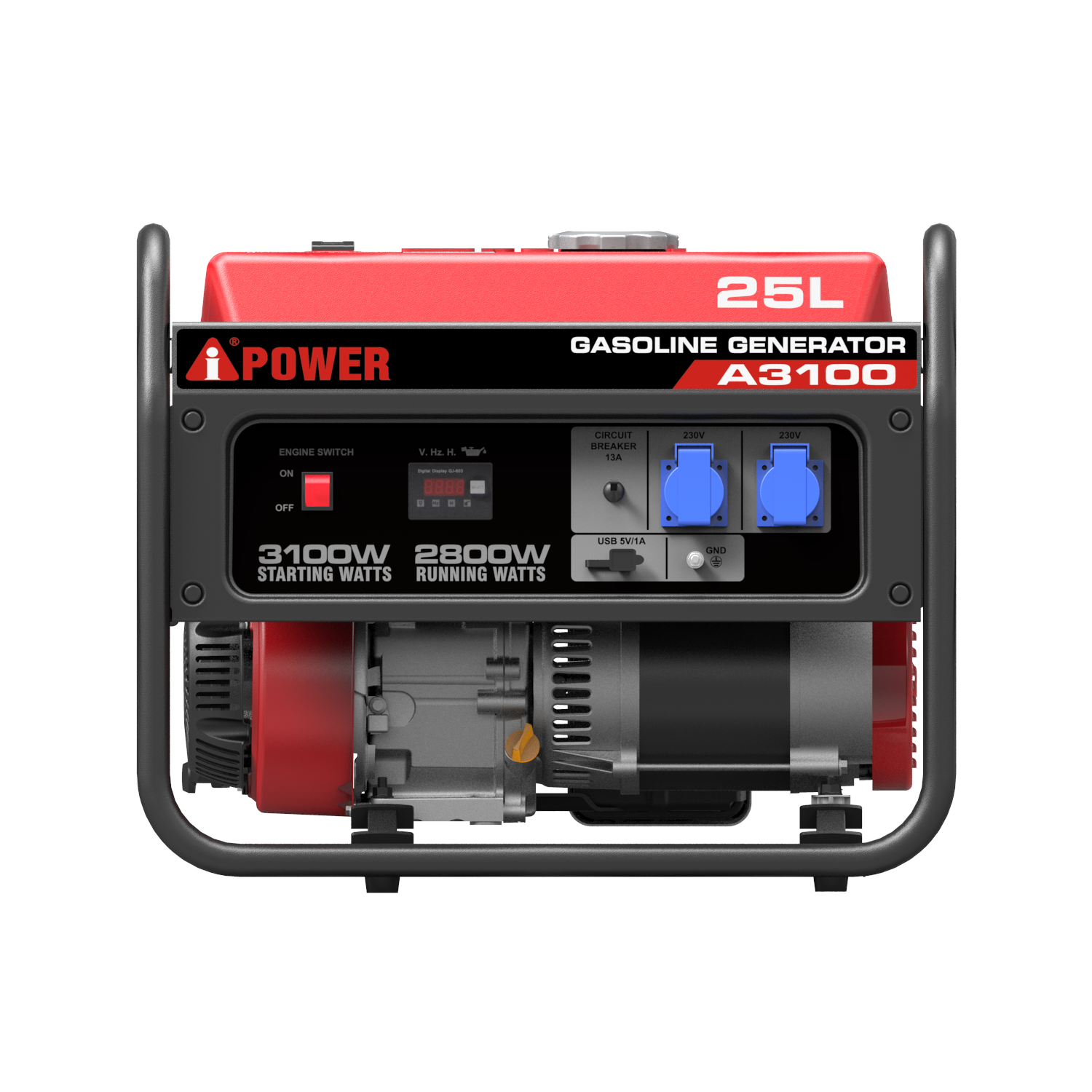

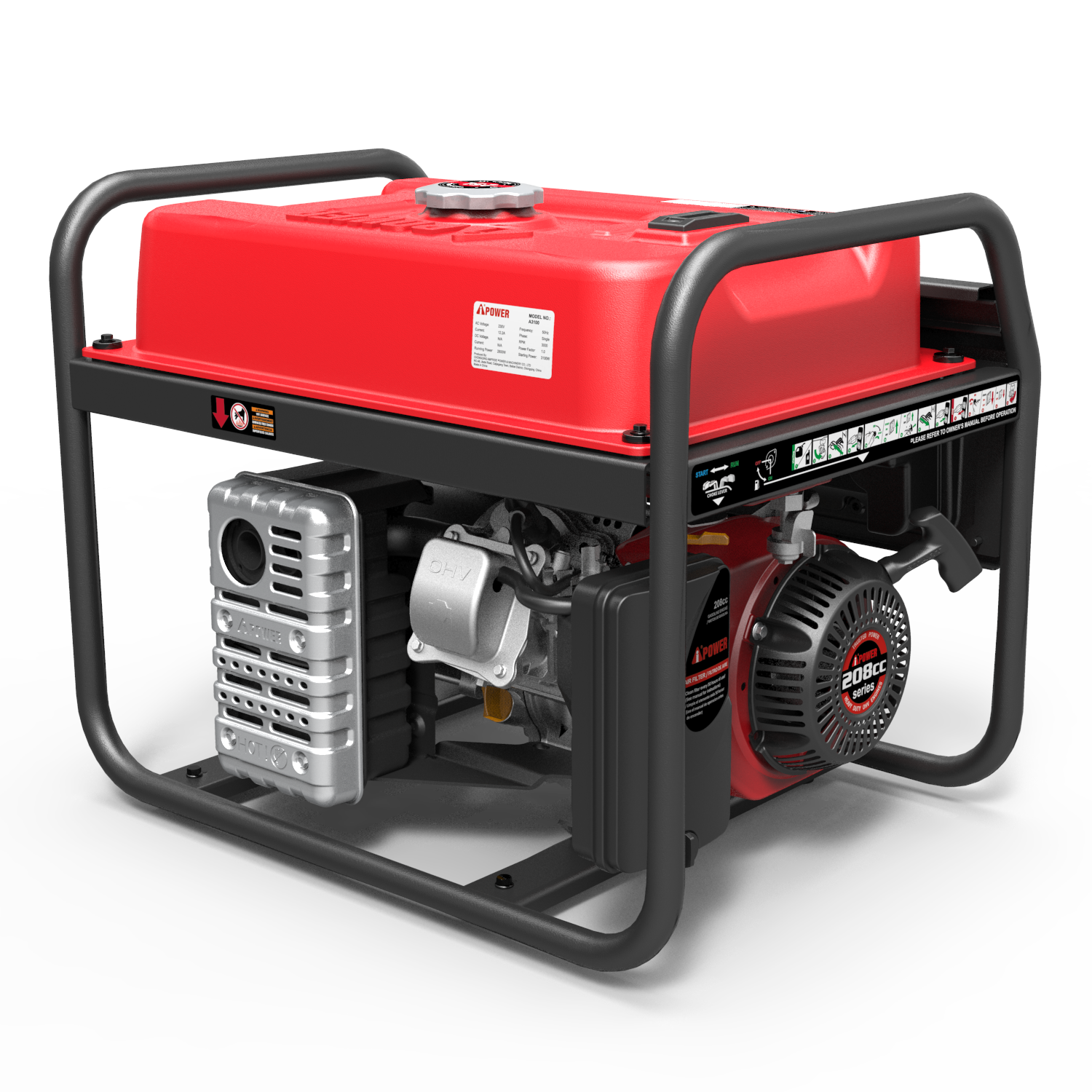

A3100
| Model | Specification | A3100 |
|---|---|---|
| Watts | Rated Watts | 2.8KW |
| Max. Watts | 3.1KW | |
| Generator | AC load(Volts) | 230V |
| Phase, Frequncy | 50HZ | |
| Max. Amperage | 12.2A | |
| Voltage Regulation | AVR | |
| Engine | Starting Method | Manual |
| Engine Type | OHV,AIR-COOLED | |
| Engine Model | AP170F | |
| Displacement cc | 208CC | |
| Horse Power hp | 7HP | |
| Low Oil Shut Down | P | |
| Fuel Tank Capacity (L) | 25L | |
| 50% Load (Hrs) | 15.5 | |
| 100% Load (Hrs) | 12 | |
| Built-in Fual Gauge | P | |
| Engine Oil Capacity | 0.6L | |
| Control Panel | 3-in-1 Meter | P |
| Low Oil Alert Lamp | P | |
| Circuit Breaker (A) | 1P-13A | |
| Socket | European style 2*16A/250V | |
| Others | Steel Frame (mm) | 614*460*490 |
| Fold-down Handle | - | |
| Battery | - | |
| Spark Plug Socket | F6RTC | |
| Plug | European style 2*16A/250V | |
| Wheel Kits | - | |
| Packing | Net Weight (kgs) | 47 |
| Gross Weight (kgs） | 49 | |
| Packing (L*W*H, mm) | 635*480*520 |
