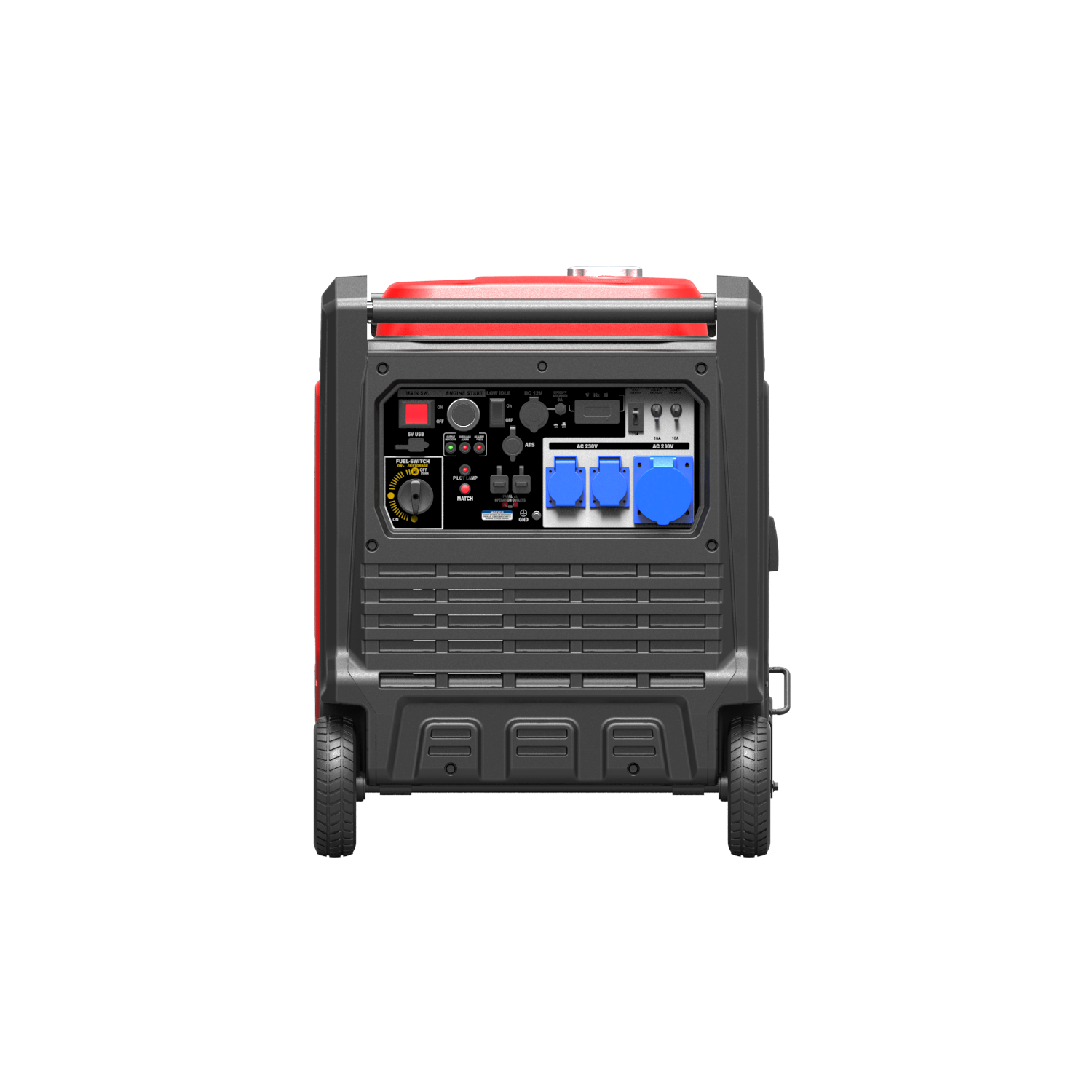

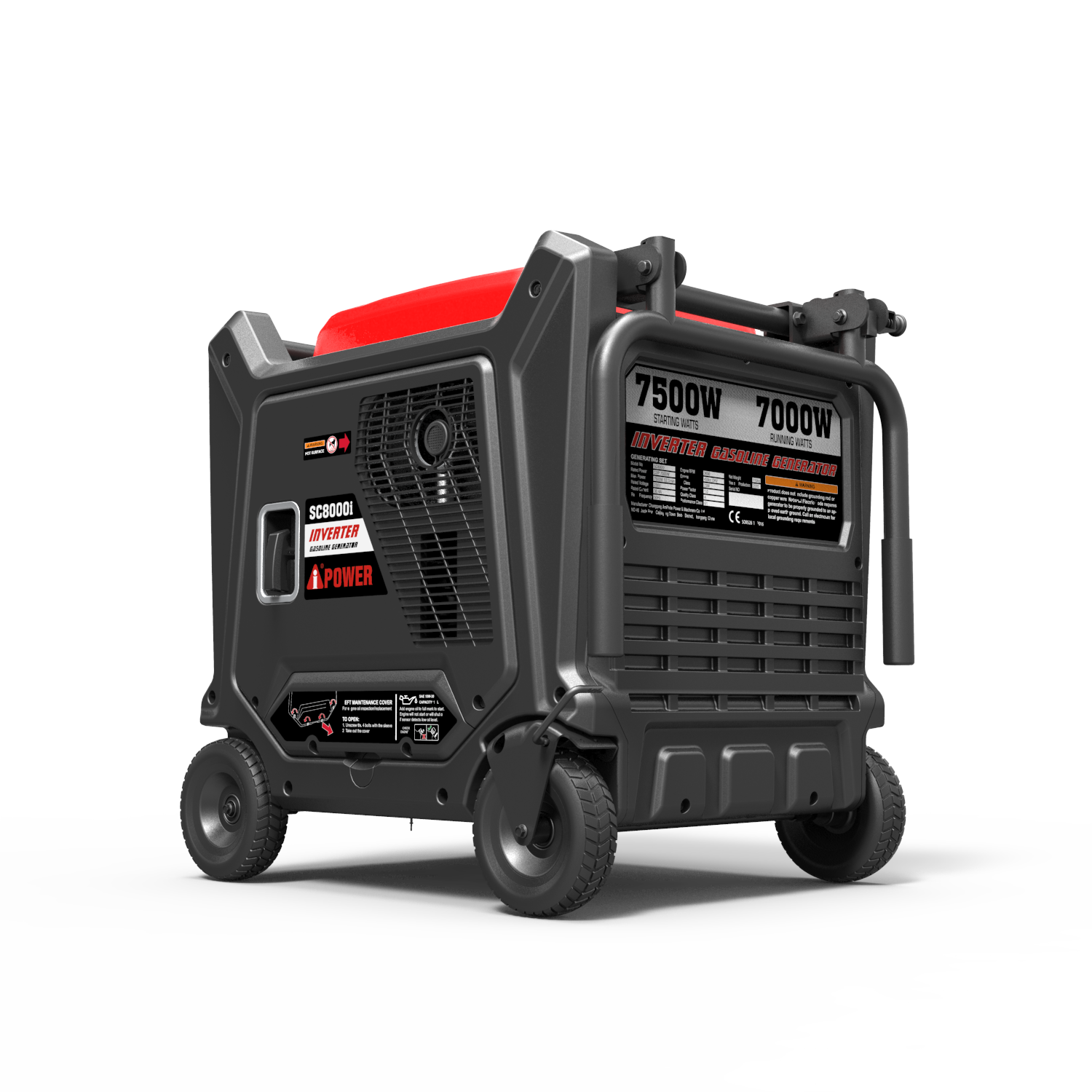

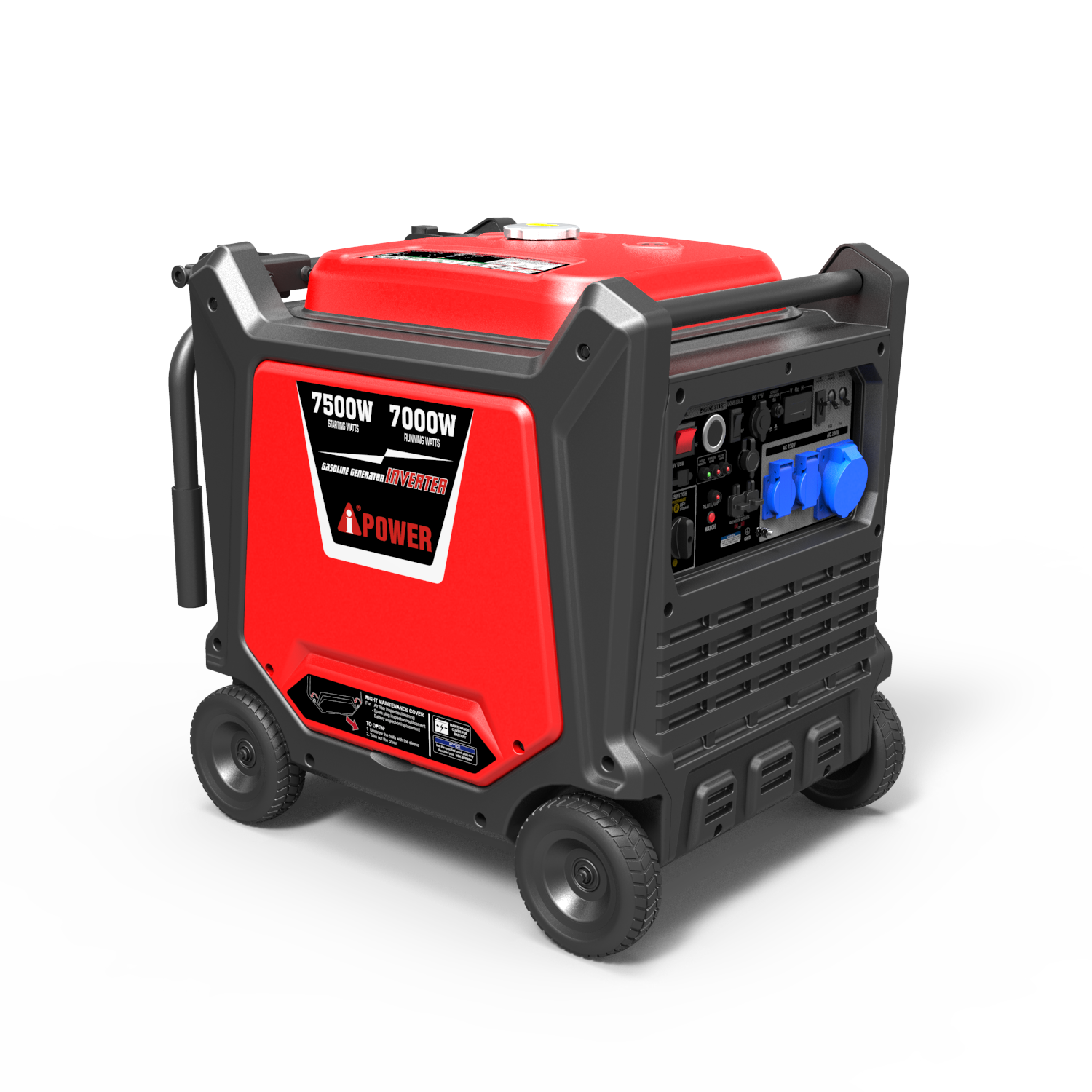

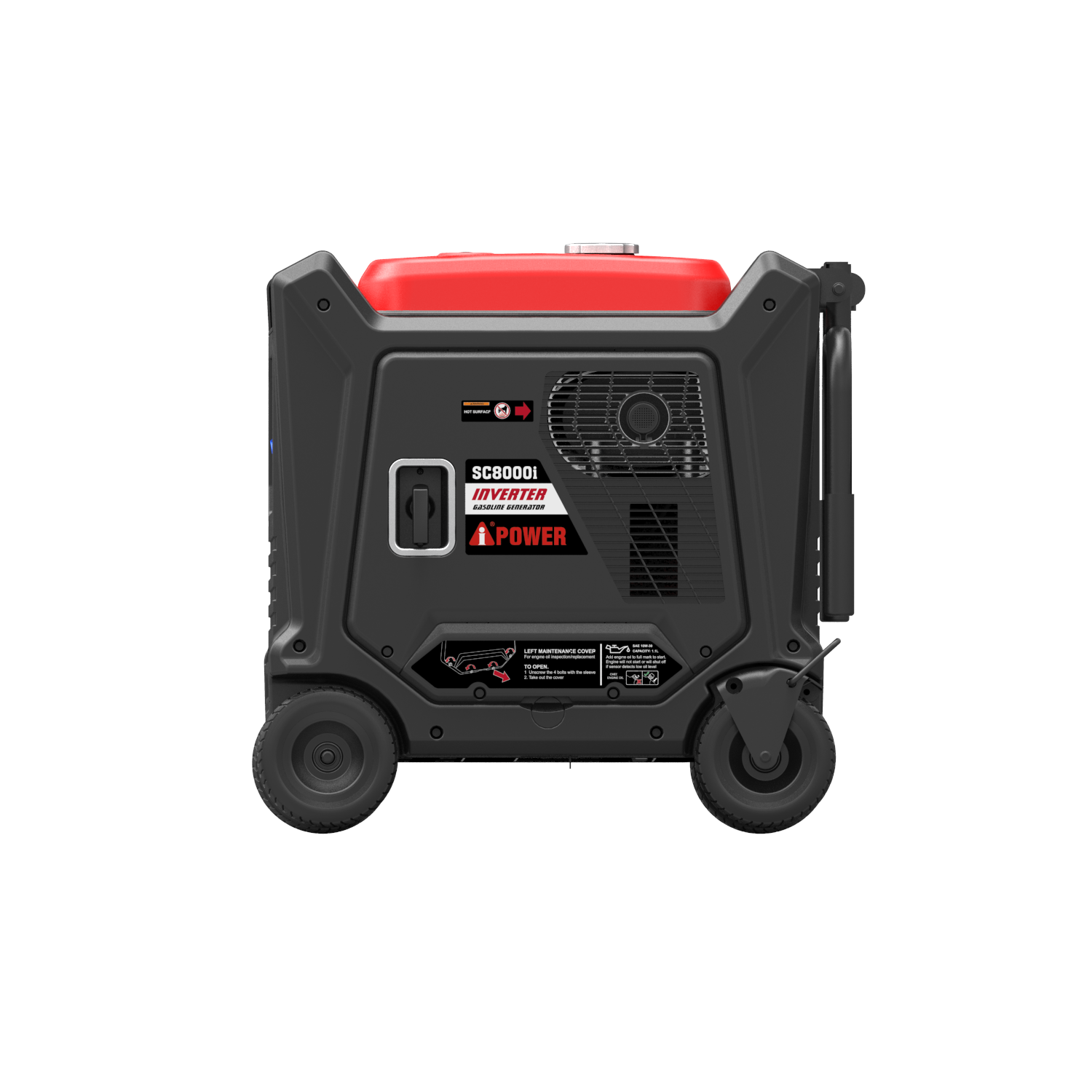

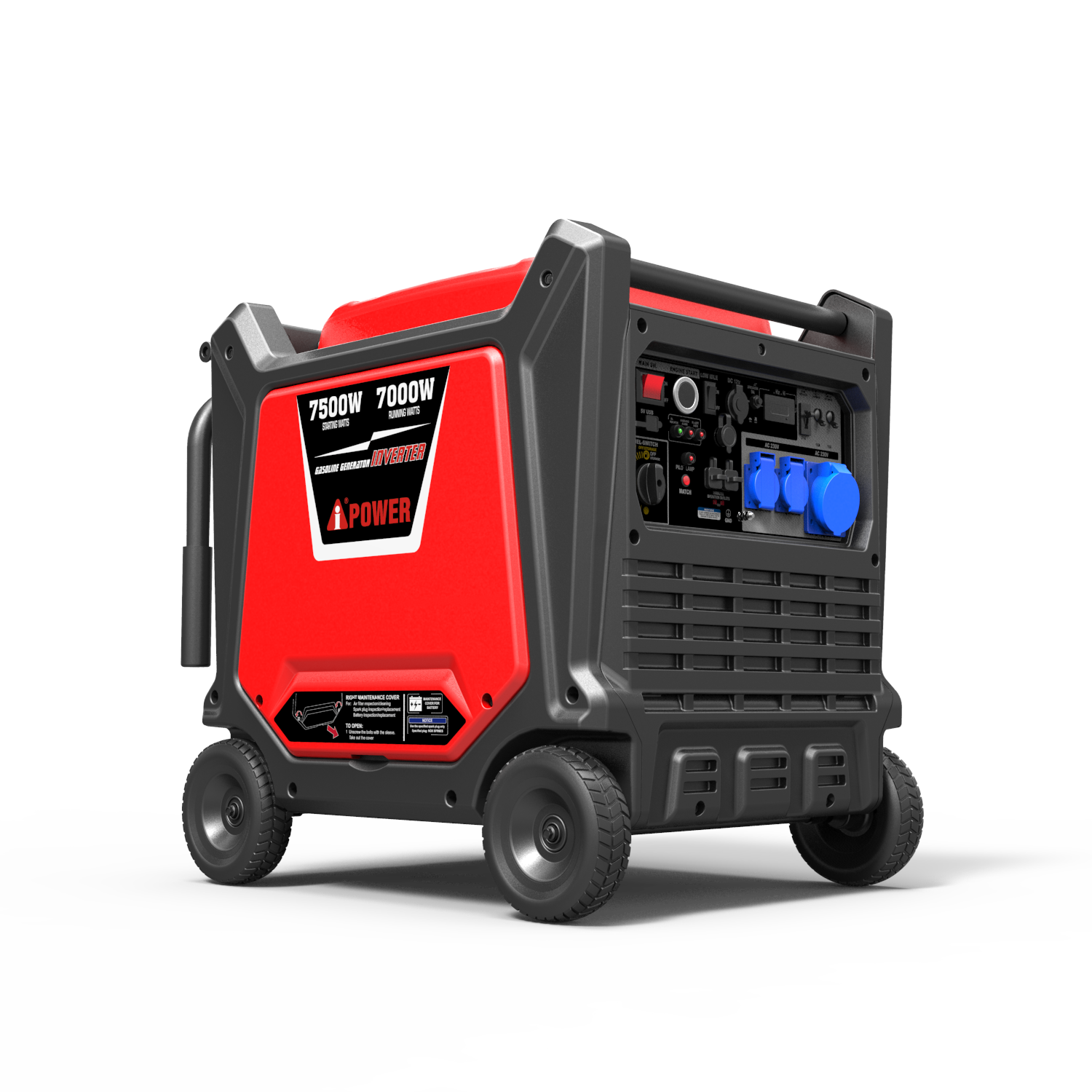

SC8000i – iPOWER

SC8000i aipower.468

SC8000i aipower.465

Description
Downloads

Model	Specification	SC8000i
Watts	Rated Watts	7000
Watts	Max. Watts	7500
Generator	100% copper coil	P
	AVR	P
	AC load(Volts)	230V
	Phase, Frequncy	50HZ
	Max. Amperage	32.6
Engine	Starting Method	Recoil/E-start
	Engine Type	OHV, 4-stroke
	Engine Model	SC460
	Displacement cc	459cc
	Horse Power hp	14.07hp/3600rpm
	Low Oil Shut Down	P
	Fuel Tank Capacity (L)	26
	Fuel Consumption	4.3L/Hr@100% Load
	50% Load (Hrs)	11
	100% Load (Hrs)	6
	Built-in Fual Gauge	P
	Engine Oil Capacity	1100
Control Panel	Digital Meter	P
	Low Oil Alert Lamp	P
	Circuit Breaker (A)	31A(AC)/16A(AC)/9A(DC)
	Remote Control	P
	Parallel Output	P
	Eco-Throttle	P
	Socket	European style 250V/ 32A /16A
	DC Port	12V8.3A USB/1.5A
Others	T.H.D	＜3%
	Battery	P
	Wheel	P
	Spark Plug Socket	NGK BPR6ES
	Plug	Europe plug
Packing	Net Weight (kgs)	104
	Gross Weight (kgs）	108
	Packing (LWH, mm)	835655800

Bedienungsanleitung

Explosionszeichnungen

Explosionszeichnung SC8000i SC460

Explosionszeichnung SC8000i SV460
