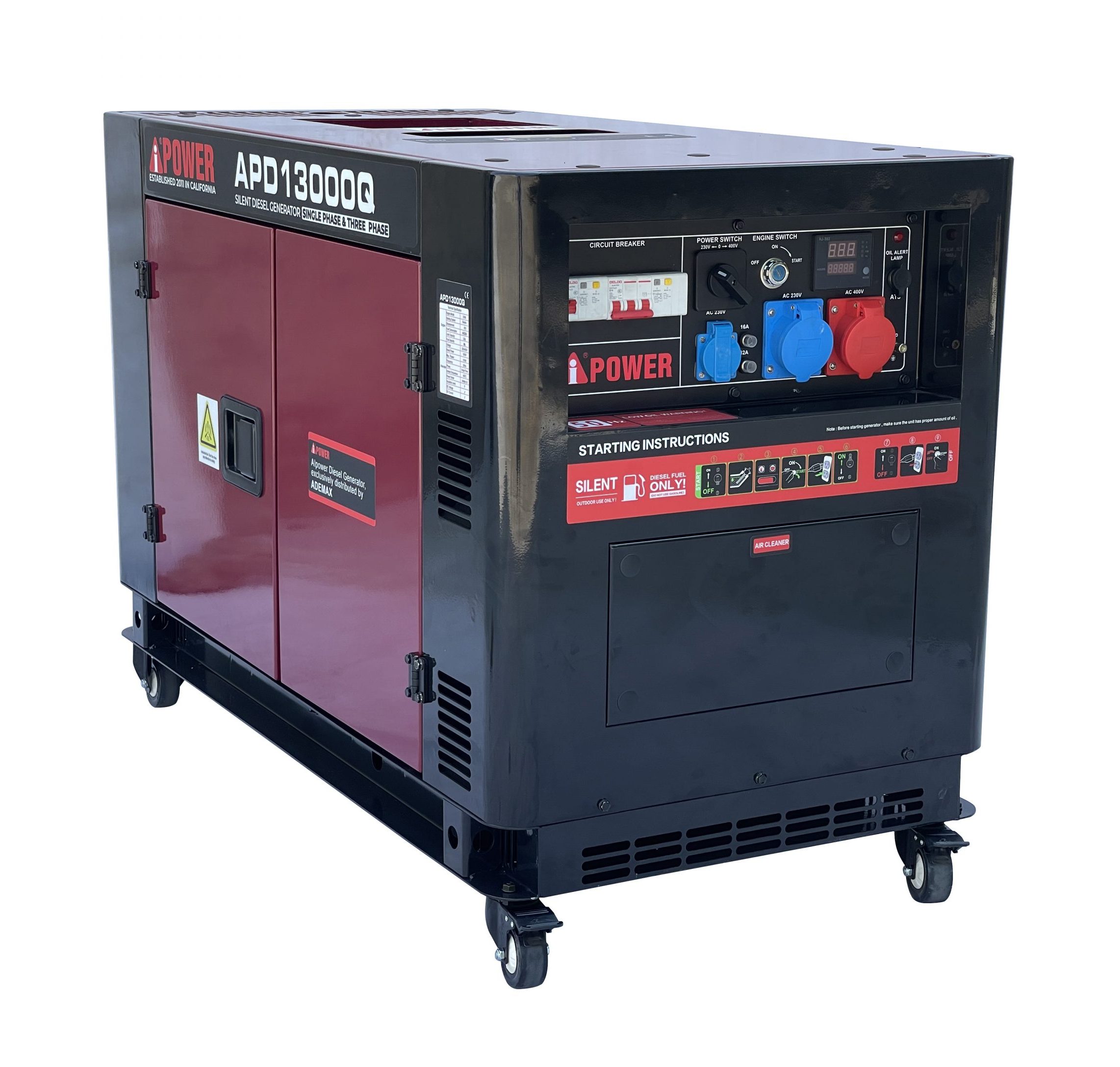

APD13000Q
| Model | APD13000Q | |
|---|---|---|
| Specification | Voltage | 230/400 |
| Rated output | 10 KW | |
| Max output | 11 KW | |
| Frequency | 50HZ | |
| Phase | Three phase | |
| Fuel Capacity | 21 L | |
| Running time | 12h | |
| Engine | Bore*Stroke(mm) | 88*72 |
| displacement (L) | 17.7HP | |
| Rated Power(KW) | 0.87 | |
| Fuel consumption rate (g. KW/h) | 13/3000rpm | |
| Compression ratio | 275 | |
| lubrication type | 19.5:1 | |
| Starting way | Pressure splash type | |
| displacement (CC) | electric start | |
| Power | 870cc | |
| oil capacity (L) | 2.3L | |
| noise | Volume 78~ 83dB at 7 meters | |
| Battery | model / battery capacity | 6-QW-40min(280)-R/N36/12V/40A.H |
| Alternator | Model | Φ245*150A |
| T.H.D | ＜23% | |
| specification | 10KW/230V/400V/245 × 150a/50hz/dcy/ copper wire 100% copper/ aluminum fan /1:5/ red green yellow black (u-v-w-n) /silent type/ | |
| Voltage control type | Single three-phase equal power | |
| control panel | type | Silent flat panel style / black spray |
| sticker | White characters on black background / frosted decals / English | |
| socket | One 50a/250v xiongda socket, one set of three-phase terminals (three red and one black) | |
| ATS connector | Yes | |
| five in one digital meter | frequency/voltage/time/output/current | |
| Flameout switch | Third gear lock switch | |
| transfer switch | 32A toggle switch | |
| package | plastic bag | YES |
| with pallets | YES | |
| packing paper box | 7-layer ordinary box + laminate + paperboard | |
| packing type | # type | |
| Gross/net weight, kg | 260kg | |
| Overall dimensions of power station, mm | 1330*730*900 | |
